Project Requirements of Marine Fender Systems
The article lists some basic parameters that will be required when choosing and designing Marine Fender Systems for Port. Generally, we divide these specifications into four big parts as following:
- Port
- Project
- Designer
- Contractor

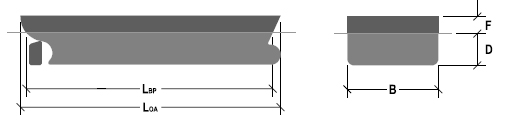

Ship Details
Structure / Vessel type
- Deadweight (t)
- Displacement (t)
- Length overall (LOA) (m)
- Length between perps (LBP) (m)
- Beam (B) (m)
- Draft (D) (m)
- Freeboard (F) (m)
- Hull pressure (P) (t/m2)
Smallest Vessel / Vessel type
- Deadweight (t)
- Displacement (t)
- Length overall (LOA) (m)
- Length between perps (LBP) (m)
- Beam (B) (m)
- Draft (D) (m)
- Freeboard (F) (m)
- Hull pressure (P) (t/m2)
Berth Details
Structure
- Length of berth (m)
- Fender / dolphin spacing (m)
- Permitted fender reaction (KN/m)
- Quay level (m)
- Cope thickness (m)
- Seabed level (m)
Smallest Vessel
- Tidal range (m)
- Highest astronomic tide (HAT) (m)
- Mean high water spring (MHWS) (m)
- Mean sea level (MSL) (m)
- Mean low water spring (MLWS) (m)
- Lowest astronomic tide (LAT) (m)
SIDE BERTHING
Typical values: 0°≤α≤15°
100 mm/s ≤V≤300 mm/s
60°≤Ø≤90°
DOLPHIN BERTHING
Typical values: 0°≤α≤10°
100 mm/s ≤V≤200 mm/s
30°≤Ø≤90°
END BERTHING
Typical values: 0°≤α≤10°
200 mm/s ≤V≤500 mm/s
0°≤Ø≤10°
LOCK OR DOCK ENTRANCE
Typical values: 0°≤α≤10°
100 mm/s ≤V≤200 mm/s
0°≤Ø≤30°
SHIP-TO-SHIP BERTHING
Typical values: 0°≤α≤15°
150 mm/s ≤V≤500 mm/s
60°≤Ø≤90°
OTHER BERTHING MODE
Berthing Approach
APPROACH CONDITIONS
- Easy berthing, sheltered
- Difficult berthing, sheltered
- Easy berthing, exposed
- Good berthing, exposed
- Difficult berthing, exposed
LARGEST SHIP
- Berthing Speed (m/s)
- Berthing Angle (deg)
- Safety Factor on Energy
SMALLEST SHIP
- Berthing Speed (m/s)
- Berthing Angle (deg)
- Safety Factor on Energy
